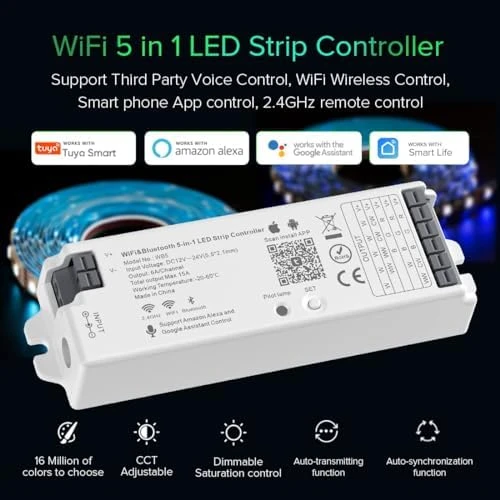

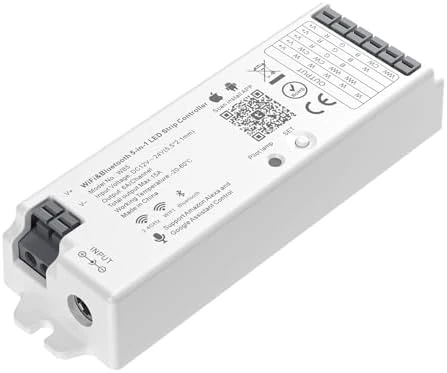

This BTF-LIGHTING WB5 controller replaces five separate controllers for dimming, CCT, RGB, RGBW, or RGB+CCT LED strips. Perfect for home workshops or accent lighting projects where you need flexibility without buying multiple devices.

I use it to control under-cabinet lights and a cove RGB strip. Switching the mode via one button is straightforward. The app lets me group lights by room and set schedules. When I say 'Alexa, dim kitchen lights to 50%,' it responds instantly. No lag or dropouts.

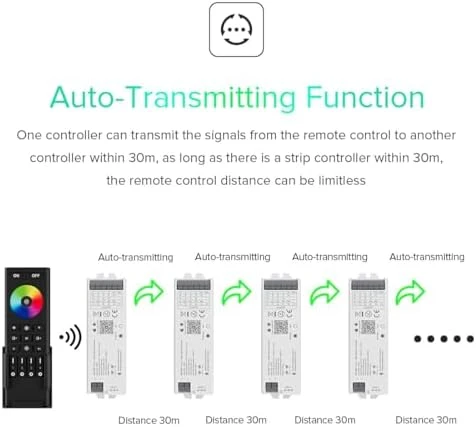

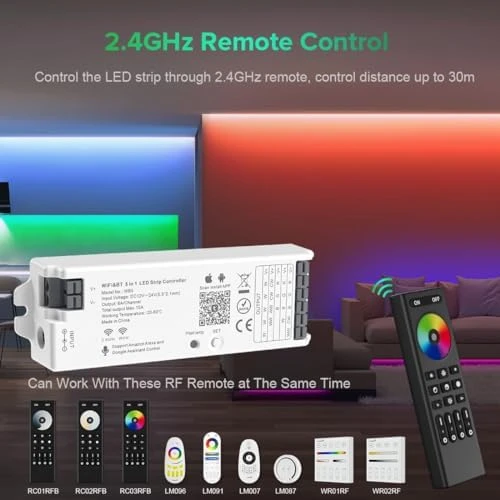

Important: This works with standard PWM strips (non-addressable). Check your strip type—if it uses WS2811 or similar ICs, it won't work. For 2.4GHz RF remotes like WR01RF, the auto-transmit function extends range across multiple controllers. Good for large layouts where you want synchronized dynamic effects.

Power handling is generous: 6A per channel, 15A total. At 24V, that's 360W—enough for long runs. The biorhythm and countdown features are handy for wake-up lighting or turning off garage lights automatically.

Features
  • Tuya WiFi & APP control
  • Compatible with Alexa & Google Home
  • 2.4GHz RF remote support
  • 16 million colors & dual white
  • Auto-transmitting & synchronization
  • PWM monochrome, CCT, RGB, RGBW, RGB+CCT
  • 5-in-1 LED control

General specs

  • Brand: BTF-LIGHTING
  • Model: WB5
  • Seller: Retailer
  • ID: B08L9GWJK1
  • Model: WB5

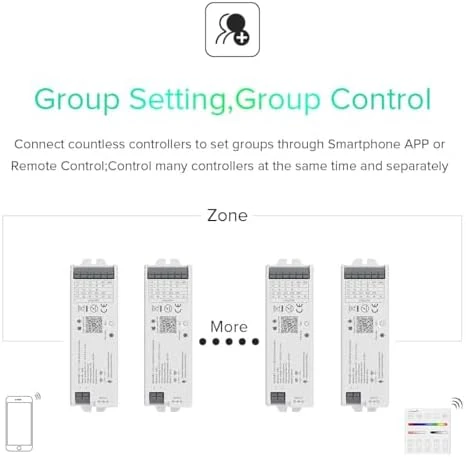

  • Functions: Dimming, Saturation Control, Group Control, Multi Zone Control, Voice Control, Timer, Countdown, Biorhythm, Tap-to-Run, Automation, Scene Customization, Sleep/Wakeup Plan, Do Not Disturb, Device Sharing
  • Product Type: WiFi PWM LED Controller
  • Color Options: 16 Million RGB Colors, Dual White (CCT)
  • Input Voltage: DC12V-24V

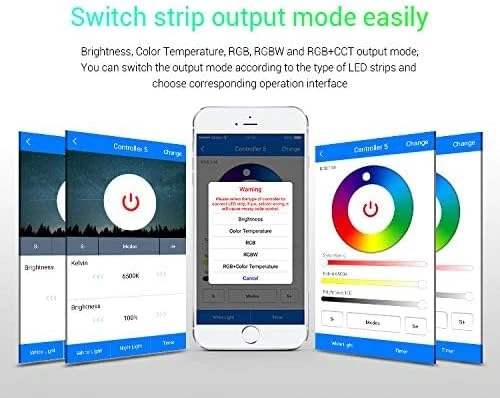

  • Control Methods: Tuya Smart/Smart Life App (2.4GHz WiFi), Alexa, Google Home, 2.4GHz RF Remote (WR01RF, WR02RF, RC01RFB, RC02RFB, RC03RFB, RC04RFB, RC05RFB)
  • Wireless Protocol: 2.4GHz WiFi, 2.4GHz RF
  • Wire Configuration: Single Color: 2 wires, CCT: 3 wires, RGB: 4 wires, RGBW: 5 wires, RGBCCT: 6 wires
  • Auto Synchronization: Yes
  • Compatible LED Types: FCOB, 5050, 3528, 5630, 5730, 3014SMD
  • Total Current Output: 15A
  • Auto Range Transmitting: 30 m (98.4 ft)

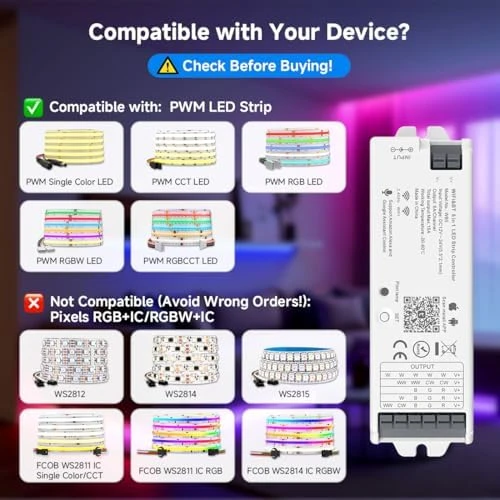

  • Incompatible Led Strips: Addressable LEDs (WS2811/WS2812/WS2813/WS2814/WS2815/SK6812/WS2805/FCOB with ICs)
  • LED Strip Compatibility: Single Color, CCT, RGB, RGBW, RGB+CCT
  • (Dc12V) Max Output Power: 180W
  • (Dc24V) Max Output Power: 360W
  • Compatibility Receiver Rf: WR01RF, WR02RF, RC01RFB, RC02RFB, RC03RFB, RC04RFB, RC05RFB
  • Channel Current Output Per: 6A
  • First listed by seller: May 20, 2026
