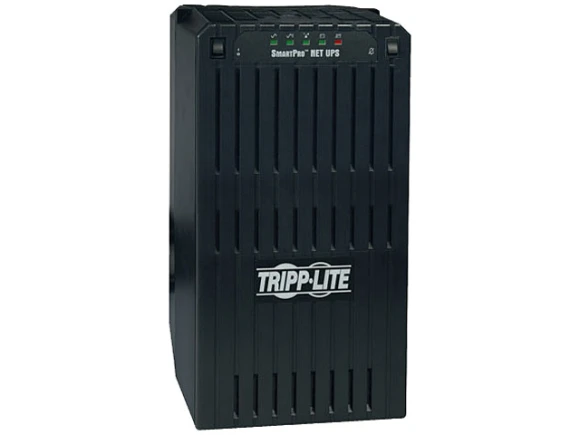

Tripp Lite SMART2200NET UPS system
If you are interested in more details, you can find full information on the seller's page.
€1,159.12
Last price update: 10/3/26
Available to order
Shipping options
Delivery to
United States
United States
Available
Product details
Features
- 6 NEMA 5-15R outlets.
- Battery runtime: 11 minutes at full load (2200 VA) and 27 minutes at half load (1100 VA).
- Battery recharge time to 90%: 2–4 hours.
- Input voltage range: 87–140 V.
- Line-mode output: sine wave line voltage 120V (-13% / +5%); battery-mode output: PWM sine wave output 120V +/-5%.
- Audible power-loss alarm has a 15-second delay; it can be silenced with the front-panel alarm cancel button and sounds again when approximately 2 minutes of runtime remain.
- RS-232 interface reports line voltage, battery voltage and remaining capacity.
- Two single-outlet banks can be switched off and on through software.
- Rated apparent power: 2200 VA; rated output power: 1700 Watts.
UPS system rated at 2200 VA apparent power and 1700 Watts output power, with 6 NEMA 5-15R outlets. Battery runtime is 11 minutes at full load (2200 VA) and 27 minutes at half load (1100 VA); recharge to 90% takes 2–4 hours.
General specs
- Brand: Tripp Lite
- Model: SMART2200NET
- Seller: Newegg
- ID: 9SIAFJ86WT0925
- Brand: Tripp Lite
- Outlets: 6
- Model Name: SMART2200NET
- Outlet Type: NEMA 5-15R
- Part Number: SMART2200NET
- Product Type: UPS system
- Interface port: RS-232
- Product family: Smart Pro
- Power-loss alarm: Audible alarm with 15 second delay sounds to indicate loss of utility power; it can be silenced by pressing the front panel alarm cancel button, and re-sounds when approximately 2 minutes runtime remain.
- RS-232 reporting: Reports line voltage, battery voltage and remaining capacity.
- Rated output power: 1700 Watts
- Input Voltage Range: 87 - 140 V
- Outlet bank control: Two single-outlet banks can be switched off and on through software.
- Rated apparent power: 2200 VA
- Output voltage in line mode: Sine wave line voltage 120V (-13% / +5%)
- Battery recharge time to 90%: 2-4 hours
- Output voltage in battery mode: PWM sine wave output 120V +/-5%
- Battery runtime at full load (2200 VA): 11 minutes
- Battery runtime at half load (1100 VA): 27 minutes
- First listed by seller: October 3, 2026
Similar products comparison
| This item | Recommendations | |||||
|---|---|---|---|---|---|---|
Tripp Lite SMART2200NET
|
2200 VA Line-Interactive UPS System 2200 VA capacity and 1600-watt power rating
|
2U Line-Interactive UPS 1500VA power capacity and 1350W power output
|
SmartPro 5000VA/3750W Line-Interactive Sine Wave UPS 5000VA / 3750W power rating; 3U form factor.
|
SmartPro UPS 3000VA, 3000W power capacity
|
SmartPro UPS, 3000VA / 3000W, 2U Rack/Tower Rated capacity: 3000VA; 3000W
|
|
| Brand | Tripp Lite | Tripp Lite | Tripp Lite | Tripp Lite | Tripp Lite | Tripp Lite |
| Price | €1,159.12 | €1,239.36 | €877.44 | €3,761.35 | €1,455.53 | €1,773.30 |
| Seller | Newegg | Newegg | Newegg | Newegg | Newegg | Newegg |
| Update | Oct 17, 2026 | Oct 17, 2026 | Oct 17, 2026 | Oct 17, 2026 | Oct 17, 2026 | Oct 17, 2026 |
| Outlets | 6 | 8 | 11 total: 1 NEMA L6-30R, 2 NEMA L6-20R, and 8 NEMA 5-15/20R | 7 | ||
| Part Number | SMART2200NET | SM2200RMXL2UTAA | SMART1500RMXL2U | SMART5000XFMRXL | SMART3000RM2U | SMART3000RM2UN |
| Product Type | UPS system | UPS system | UPS | line-interactive sine wave UPS | UPS | UPS |
| Product family | Smart Pro | SmartPro | SmartPro | SmartPro | SmartPro | SmartPro |
| Input Voltage Range | 87 - 140 V | 80V-151V; adjustable to 70-153V | 80V-151V; adjustable to 70-153V | 80V-151V; adjustable to 70-153V | ||
| Input Voltage | 120V AC | 120V | 120V | 120V | ||
| Battery recharge time | Less than 4.5 hours from 10% to 90% | Less than 4.5 hours from 10 to 90%; typical, after full-load discharge | 2–4 hours to 90% | Less than 5 hours from 10 to 90%; typical, after full load discharge | Less than 5 hours from 10 to 90% (typical, full load discharge) | |
| Battery runtime at full load | 6 min. at 1000W | 3 min. at 3000W | 3 min. at 3000W | |||
| Battery runtime at half load | 17 min. at 500W | 9 min. at 1500W | 9 min. at 1500W | |||
