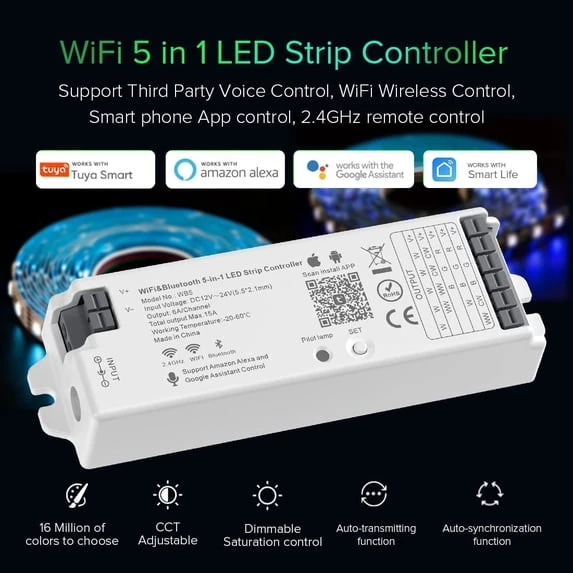

BTF-LIGHTING WB5 5-in-1 PWM LED Controller: 5-in-1 LED control
If you are interested in more details, you can find full information on the seller's page.
Shipping options
Delivery to
Russia
Russia
Available
Product details
Features
- Tuya WiFi & APP control
- Compatible with Alexa & Google Home
- 2.4GHz RF remote support
- 16 million colors & dual white
- Auto-transmitting & synchronization
- PWM monochrome, CCT, RGB, RGBW, RGB+CCT
- 5-in-1 LED control
This BTF-LIGHTING WB5 controller replaces five separate controllers for dimming, CCT, RGB, RGBW, or RGB+CCT LED strips. Perfect for home workshops or accent lighting projects where you need flexibility without buying multiple devices.
I use it to control under-cabinet lights and a cove RGB strip. Switching the mode via one button is straightforward. The app lets me group lights by room and set schedules. When I say 'Alexa, dim kitchen lights to 50%,' it responds instantly. No lag or dropouts.
Important: This works with standard PWM strips (non-addressable). Check your strip type—if it uses WS2811 or similar ICs, it won't work. For 2.4GHz RF remotes like WR01RF, the auto-transmit function extends range across multiple controllers. Good for large layouts where you want synchronized dynamic effects.
Power handling is generous: 6A per channel, 15A total. At 24V, that's 360W—enough for long runs. The biorhythm and countdown features are handy for wake-up lighting or turning off garage lights automatically.
General specs
- Brand: BTF-LIGHTING
- Model: WB5
- Seller: Retailer
- ID: B08L9GWJK1
- Model: WB5
- Functions: Dimming, Saturation Control, Group Control, Multi Zone Control, Voice Control, Timer, Countdown, Biorhythm, Tap-to-Run, Automation, Scene Customization, Sleep/Wakeup Plan, Do Not Disturb, Device Sharing
- Product Type: WiFi PWM LED Controller
- Color Options: 16 Million RGB Colors, Dual White (CCT)
- Input Voltage: DC12V-24V
- Control Methods: Tuya Smart/Smart Life App (2.4GHz WiFi), Alexa, Google Home, 2.4GHz RF Remote (WR01RF, WR02RF, RC01RFB, RC02RFB, RC03RFB, RC04RFB, RC05RFB)
- Wireless Protocol: 2.4GHz WiFi, 2.4GHz RF
- Wire Configuration: Single Color: 2 wires, CCT: 3 wires, RGB: 4 wires, RGBW: 5 wires, RGBCCT: 6 wires
- Auto-Synchronization: Yes
- Compatible LED Types: FCOB, 5050, 3528, 5630, 5730, 3014SMD
- Total Current Output: 15A
- Auto-Transmitting Range: 30 m (98.4 ft)
- Incompatible LED Strips: Addressable LEDs (WS2811/WS2812/WS2813/WS2814/WS2815/SK6812/WS2805/FCOB with ICs)
- LED Strip Compatibility: Single Color, CCT, RGB, RGBW, RGB+CCT
- Max Output Power (DC12V): 180W
- Max Output Power (DC24V): 360W
- RF Receiver Compatibility: WR01RF, WR02RF, RC01RFB, RC02RFB, RC03RFB, RC04RFB, RC05RFB
- Output Current per Channel: 6A
