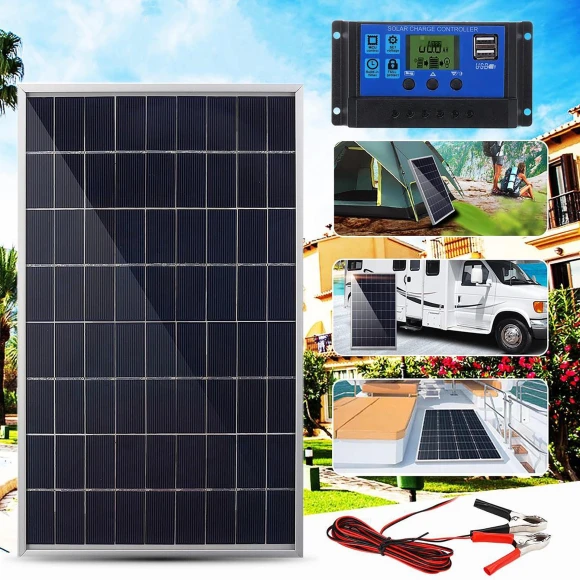

Gaming Bay SY1024H Solar Panel with Photovoltaic Controller: 10W single board with 10A PWM controller
For the DIY enthusiast who wants reliable off-grid power for a backyard chicken coop, remote cabin, or electric vehicle charging station. This solar charge controller transforms sunlight into dependable energy, giving you independence from the grid.
While most solar controllers focus on basic charging, this unit delivers peace of mind through smart monitoring. The built-in LCD display and Wi-Fi connectivity let you check battery status and solar input from your phone, so you know your system is working even when you're miles away. It automatically adjusts for 12V or 24V batteries and handles temperature changes from freezing winters to hot summers.
Install it once with the multiple mounting holes and IP67 waterproof rating, then forget about it. The PWM technology efficiently charges lead-acid batteries, while overload and short circuit protection prevent damage. Use the Solar Station Monitor app to track performance or connect via USB for detailed data logging on your laptop.
Features
- Maximum solar panel power: 120W (12V battery) / 320W (24V battery)
- IP67 waterproof rating
- LCD display with status and data indication
- Mobile app compatibility (Solar Station Monitor)
- Wi-Fi module connectivity
- Automatic 12V/24V selection
- Working temperature: -31°F to 122°F
- Size: 5.43 x 2.72 x 1.46 inches
- Weight: 0.29 lbs
- USB output: 5V/3A
- Dual USB output: 5V/2.5A (max)
- 1-year warranty
- Solar cell power warranty: 90% of nominal power in 10 years, 80% in 25 years
- Battery type compatibility: Lead-acid (OPEN, AGM, GEL)
- Multiple mounting holes for ease of installation
- Communication port: RJ45 interface
- Terminals for wires up to 4mm²
- Remote temperature sensor terminals
- RJ45 to USB cable connectivity
- PC/laptop program compatibility
- Material: Metal housing
- Technology: PWM (Pulse Width Modulation)
- Equalization voltage: 14.4V (Sealed), 14.2V (Gel), 14.6V (Flood)
- Float charge voltage: 13.7V (default, adjustable)
- Discharge stop voltage: 10.7V (default, adjustable)
- Discharge reconnect voltage: 12.6V (default, adjustable)
- Charge reconnect voltage: 13V
- Voltage of open light: Solar Panel 8V (Light lights delay)
- Voltage of close light: Solar Panel 8V (Light off delay)
- Temperature sensor for automatic compensation: -3mV/°F/2V
- Maximum solar panel voltage: 50V
- Overload protection: ≥1.05 times the rated discharge current
- Short circuit protection: ≥2 times the rated discharge current
- Self-consumption: ≤ 8.4mA (12V) / ≤ 7.8mA (24V)
- Operating temperature range: -31°F to 131°F
- Length: 5.91 inches
- Width: 3.07 inches
- Height: 1.38 inches
- 10W single board with 10A PWM controller
General specs
- Brand: Gaming Bay
- Model: SY1024H
- Seller: Joom
- ID: 6783c1f55b7677422cff1d30
- Material: Plastic
- Technology: MPPT
- Max Output Power: 10
- First listed by seller: 12/10/25
If you are interested in more details, you can find full information on the seller's page.
