SmartFly Tech TF-Luna Lidar Sensor 0.1-8m Distance Finder for Drone/Robot Obstacle Avoidance
Ever tried measuring distance with a tape measure while your drone's buzzing around? Yeah, not ideal. That's where the TF-Luna Lidar Sensor comes in—offering pinpoint accuracy from 0.2m to 8m (down to the centimeter, no less). Whether it's drones dodging trees or robots avoiding your toes, this little gadget's got you covered.
And talk about sipping power like a fine espresso—less than 0.35W means your battery's not going to bail on you mid-flight. Perfect for those 'I forgot to charge it again' moments.
Size matters, right? At a tiny 35mm x 21.25mm x 13.5mm and lighter than a handful of paperclips (under 5g), it slips into projects like it was meant to be there. No awkward bulges here.
From keeping drones at the perfect altitude to making sure your smart device doesn't think a pedestrian is a pesky bug, the TF-Luna's versatility is almost showing off. Almost.

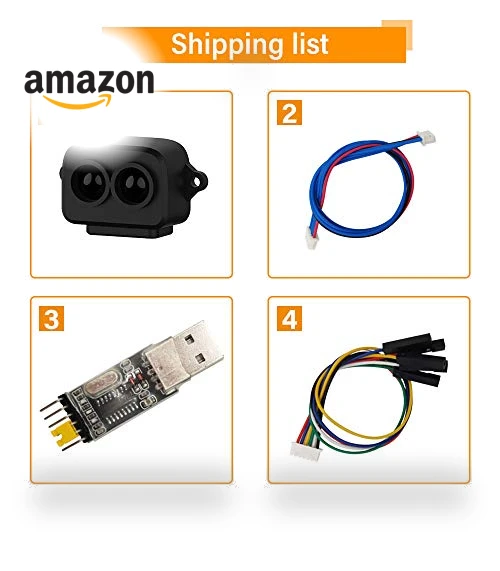

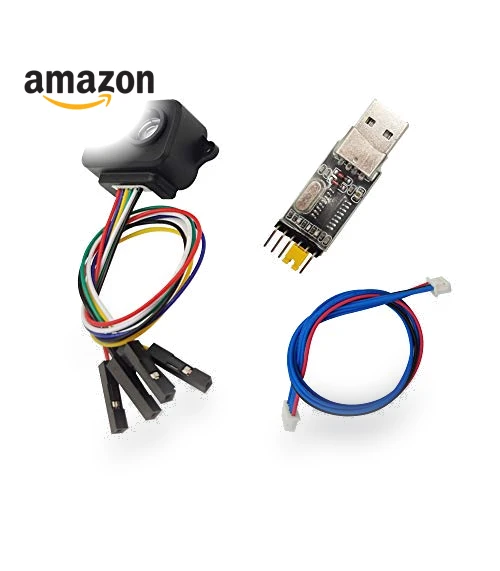

What's in the box? Glad you asked. You'll get the TF-Luna LiDAR Module (obviously), a data wire, a USB To RS232 TTL Converter Module (because who doesn't love a good converter?), and a 15cm serial cable to tie it all together. Everything you need to start measuring the world with laser precision.
General specs
- Brand: SmartFly Tech
- Model: TF-Luna
- Seller: Amazon
- Operating range: 0.2m~8m(90%reflectivity)
- Accuracy: ±6cm@(0.2-3m), ±2%@(3m-8m)
- Measurement unit: cm
- Range resolution: 1cm
- FOV: 2°
- Frame rate: 1~250Hz(Default setting is 100Hz)
- Supply voltage: 5V±0.1V
- Average current: ≤70mA
- Peak current: 150mA
- Average power: 350mW
- Communication level: LVTTL(3.3V)
- Communication interface: UART/IIC
- Default baud rate: 115200
- Light source: VCSEL
- Wavelength: 850nm
- Operating temperature: -20°C~75°C
- Certification: CE,FCC,ROHS
- Size: 35mm*21.25mm*13.5mm (L*W*H)
- Housing material: ABS+PC
- Storage temperature: -20C~75C
- Weight: <5g
If you are interested in more details, you can find full information on the seller's page.
