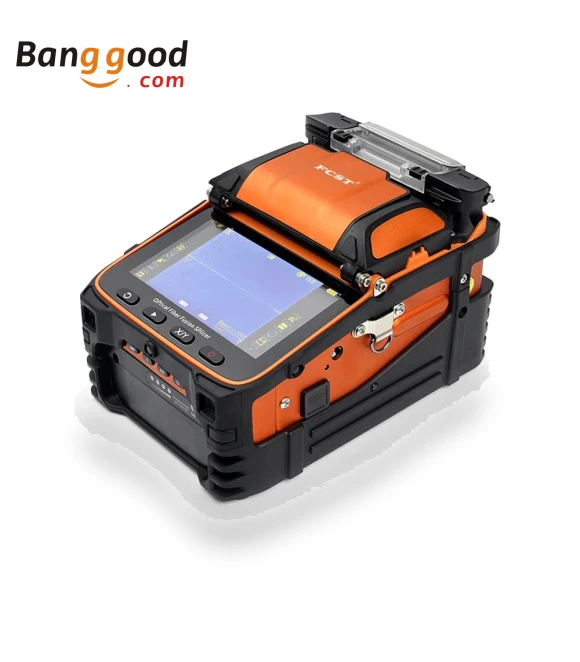

SIGNAL FIRE AI-9 Fusion Splicer: 6 motors
Meet the 9IN1 Orange Fusion Splicer AI-9—your new best friend in the fiber optic world. This isn't just any splicer; it's a speed demon with 6 motors that gets the job done in a blink-and-you'll-miss-it 5 seconds. Perfect for when you're racing against the clock. And with its 5-inch TFT color display, you'll see every detail crystal clear. Plus, thanks to Bluetooth 4.2, you can wander up to 60 meters away without missing a beat. Talk about cutting the cord! 🚀
Whether you're working with single mode fiber (SMF G.652) or BIF G.657, this splicer's got you covered, handling cladding diameters from 80-150 µm like a pro. It's smart, too, offering automatic focusing core alignment and conventional high-precision welding modes. And don't worry about roughing it up—this baby's waterproof, dustproof, and fall-proof. Basically, it's the superhero of splicers. 💪
But wait, there's more! Packing a 7800mAh battery, it's ready for the long haul. Need to charge your phone or light up your workspace? The USB ports have got your back. And with unlimited data storage (plus room to grow), you'll never have to delete anything again. Oh, and for the tech-savvy, there's remote monitoring via app—because who doesn't love checking welding records from the comfort of their couch? 📱
Features
- 5 seconds splicing time
- Bluetooth 4.2
- 5 inch TFT color display
- Waterproof, dustproof, fall proof
- 6 motors
General specs
- Brand: SIGNAL FIRE
- Model: AI-9
- Seller: Banggood
- ID: 2024176
- Fiber alignment: Core cladding
- Motor number: 6 motors
- Splicing time: 5 seconds
- Heating mode: 15 seconds, customizable based on external environment
- Fiber type: Single mode fiber (SMF G.652), BIF G.657, Suitable for single mode, multi mode, bare fiber, tail fiber, drop cable, jumper fiber, drop cable
- Cladding diameter: 80-150 µm
- Splicing loss: 0.02dB (SM), 0.01dB (MM), 0.04dB (DS NZDS)
- Splicing mode: Automatic focusing core alignment, conventional high precision welding
- Splicing way: Automatic, semi automatic
- Fiber holder: Three in one fixture
- Battery capacity: 7800mAh, charging time ≤3.5 hours, Can continuously weld and heat about 260 cores
- Magnification: 300 (X or Y), 150 (X or Y)
- Fiber diameter: Coating diameter: 80-150µm, Cladding diameter: 100-1000µm
- Cutting length: Coating layer 250µm below: 8-16mm, Coating layer 250-1000µm: 16mm
- Heat shrink tube: 60mm, 50mm, 40mm, 25mm
- Tensile testing: standard 2N
- Display: 5 inch TFT color display screen
- External lighting: USB port for external LED light
- Charge mobile device: USB port for charging mobile devices
- Boot time: 1 second
- Data is stored: Unlimited, internal storage 1000 groups, expandable
- Wireless communication: Bluetooth 4.2, 2.4GHz, up to 60m range
- Software upgrade: Mobile app update, Bluetooth synchronization
- Management function: Remote monitoring via app, view welding records, set equipment usage limits
- Interface: USB2.0, Type A
- Return loss: Better than 60 dB
- Product protection: Waterproof, dustproof, fall proof
- First listed by seller: 1/4/25
If you are interested in more details, you can find full information on the seller's page.
