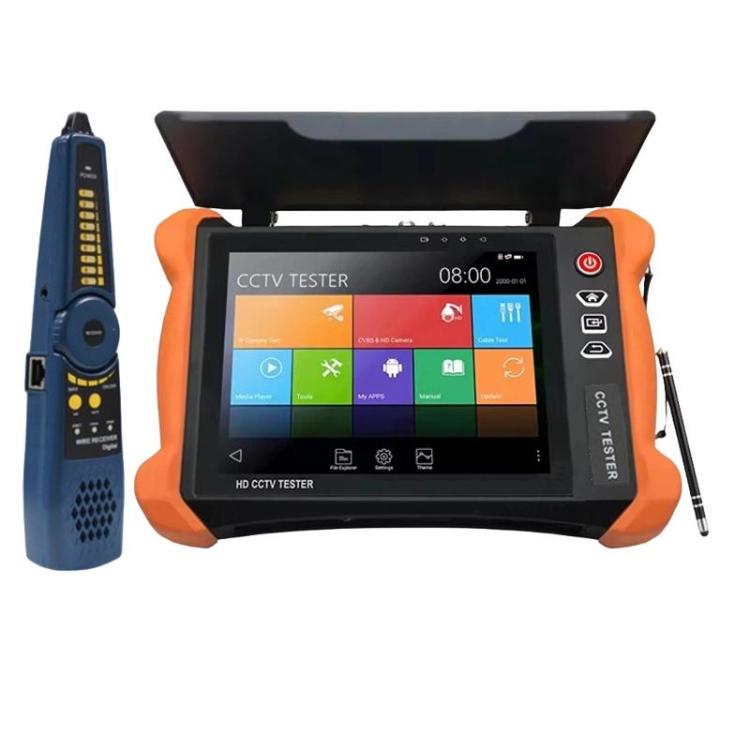

X9-ADH Network Coaxial Video Surveillance Tester: 8-inch 2K IPS touch screen
Available Options
It's a rare tool that bridges the analog and digital worlds of video surveillance, but the X9-ADH Network Coaxial Video Surveillance Tester pulls it off with professional flair. This device is a diagnostic powerhouse for security camera installers, packing both network (IP) and analog (coaxial) testing into one sleek unit. Its high-resolution touch screen and robust feature set make on-site troubleshooting, configuration, and performance checks a breeze—no more juggling multiple gadgets in the field.
Beyond the basics, it decodes H.265 and 4K streams with ease, tests PoE and DC power, and even simulates lens focusing for fine-tuning. Need to handle up to four camera channels at once? Done. It generates test reports, bulk-modifies IP addresses for brands like Hikvision and Dahua, and boasts an 11-hour battery life that keeps it running through the longest shifts. Whether you're deploying a new system or untangling an old one, this tester slashes downtime and amps up efficiency, all in a single, reliable package.
- Supports H.265 and 4K testing
- 4-window ONVIF multi-channel display
- PoE and DC12V power testing
- Built-in WiFi and hotspot functionality
- 8-inch 2K IPS touch screen
General specs
- Model: X9-ADH
- Seller: Sunsky
- Screen Size: 8 inches
- Screen Resolution: 2048x1536
- Screen Type: IPS capacitive touch
- Supported Resolutions: Up to 4K
- Video Codecs: H.265, H.264
- ONVIF Support: Yes
- Channels: 4
- Power Testing: PoE, DC12V
- Battery Capacity: 7000mAh
- Battery Life: 11 hours
- Charging Time: 5-6 hours
- Network Port: 10/100/1000M RJ45
- WiFi: Built-in, 150M rate
- HDMI: Input and output, up to 4K 60fps
- Working Temperature: -10°C to +50°C
- Working Humidity: 30% to 90%
- Dimensions: 26.4 x 18.2 x 4.3 cm
- Weight: 1 kg
- First listed by seller: 9/3/25
If you are interested in more details, you can find full information on the seller's page.
