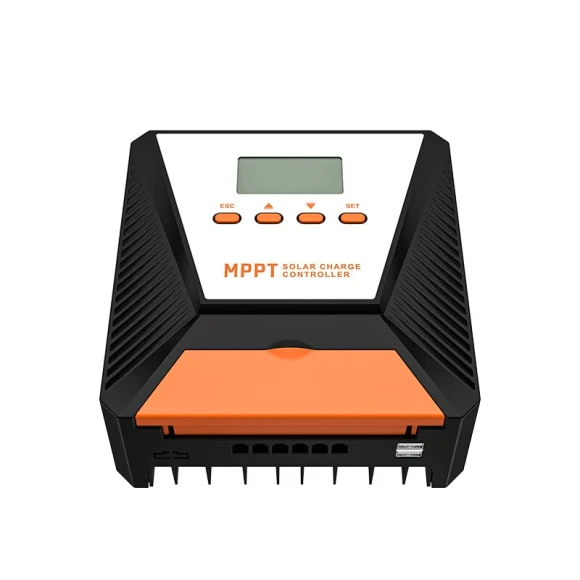

GM D60 R MPPT Solar Charge Controller: 60A rated charging current
For the DIY solar enthusiast or off-grid homeowner, this MPPT solar charge controller turns your panel's variable output into reliable power for your batteries. You need a device that handles real-world fluctuations, like when clouds pass over your panels. This controller's 99% MPPT tracking efficiency ensures it captures every possible watt, so your battery charges faster even on partly sunny days.
Think beyond basic regulation. This unit offers peace of mind with intelligent multi-security protection, including overcharging and short circuit safeguards. It automatically adapts between 12V and 24V systems, simplifying setup. The temperature compensation adjusts charging based on weather, a detail that prevents battery damage during hot summers or cold winters. With a rated charging current of 60A, it supports up to 1440W at 24V, making it compatible with expanding your solar array as your needs grow.
Features
- 12V/24V auto adaptive voltage
- Up to 98% conversion efficiency
- 99% MPPT tracking efficiency
- Intelligent multi security protection
- USB output 5V 3A
- 60A rated charging current
General specs
- Brand: GM
- Model: D60 R
- Seller: Banggood
- ID: 2027620
- Model: GM D20 R, GM D40 R, GM D60 R
- Altitude: ≤9842.52 feet
- Net weight: 0.88 lbs (GM D20 R), 2.38 lbs (GM D40 R), 3.15 lbs (GM D60 R)
- USB Output: 5V 3A
- Gross weight: 1.15 lbs (GM D20 R), 2.87 lbs (GM D40 R), 3.64 lbs (GM D60 R)
- : ≤0.4W
- Product size: 5.31x5.31x2.17 inches (GM D20 R), 7.72x7.32x2.99 inches (GM D40 R), 9.06x7.32x2.99 inches (GM D60 R)
- System Voltage: 12V, 24V Auto Adaptive
- Battery Voltage: 9-32V
- Communication mode: RS485 Interface (Needs to Be Purchased)
- Ingress Protection: IP21
- Rated load current: 20A
- Protection Features: Overcharging, Over discharging, Short circuit
- Battery Compatibility: FLD, LiFePO4, SLD, GEL, AG
- Conversion Efficiency: ≤98%
- Operating Temperature: 14°F to 149°F
- Rated charging current: 20A (GM D20 R), 40A (GM D40 R), 60A (GM D60 R)
- Efficiency Mppt Tracking: 99%
- Input Maximum Solar Voltage: 50V VOC (GM D20 R), 100V VOC (GM D40 R to GM D60 R)
- Electromagnetic compatibility: Compliant with EN61000, EN55022, EN55024
- Maximum Point Power Range Voltage: Battery Voltage +2V to 50V (GM D20 R), Battery Voltage +2V to 100V (GM D40 R to GM D60 R)
- Input Maximum Of Panel Power Solar: 240W (12V) / 480W (24V) (GM D20 R), 480W (12V) / 960W (24V) (GM D40 R), 720W (12V) / 1440W (24V) (GM D60 R)
- Temperature compensation coefficient: -2mV/°C (2V Default Value)
- First listed by seller: 2/23/26
If you are interested in more details, you can find full information on the seller's page.
