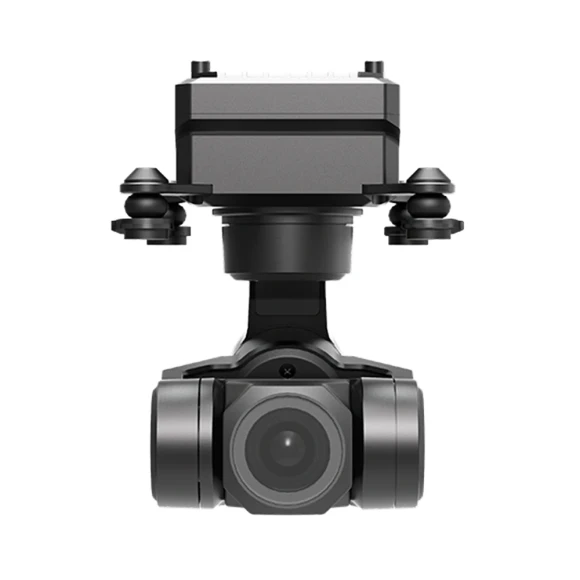

XF Z-1Mini 4K FPV Gimbal with Full-Color Night Vision: 4K AI imaging with full-color night vision
For FPV drone pilots who push their racing drones to the limit, the XF Z-1Mini 4K FPV gimbal is your key to capturing every high-speed maneuver with cinematic clarity. While many focus on raw specs, this gimbal delivers immersive racing experiences by combining micro stabilization with full-color night vision, so you can review your flights in stunning detail, even in low-light conditions.
The 3-axis non-orthogonal gimbal provides ±0.01° accuracy, ensuring smooth footage that feels like you're in the cockpit. With S.BUS/Serial control, you get precise adjustments mid-flight, and the 4K AI imaging locks onto objects automatically. This setup lets you focus on the race while the camera handles the tracking, making post-flight analysis effortless and actionable for improving your skills.
Features
- Ultra-light 3-axis micro stabilization at 0.15 lbs
- S.BUS/Serial/UART control protocol compatibility
- Wide voltage range 10-26.4V DC
- Compact dimensions 1.97 x 1.91 x 2.65 inches
- 8x digital zoom with 8.29 megapixel sensor
- 4K AI imaging with full-color night vision
General specs
- Brand: XF
- Model: Z-1Mini
- Seller: Banggood
- ID: 2028203
- Brand: XF
- Weight: 69 g (0.15 lbs)
- Aperture: f/1.0
- Item Name: XF Z-1Mini 4K FPV Gimbal
- Dimensions: 50.2 x 48.4 x 67.4 mm (1.98 x 1.91 x 2.65 inches)
- Pixel Size: 1.45 μm x 1.45 μm
- Resolution: 3840 x 2160 pixels
- AI Features: AI multi-object tracking, Person/vehicle auto-lock
- Gimbal Type: 3-axis Non-orthogonal Mechanical Stabilization
- Mount Power: Wide voltage: 10-26.4V DC, 360° mounting: upward/downward
- Image Sensor: 1/2.8 inch CMOS
- Night Vision: Full-color night vision engine
- Video Output: HDMI, Network streaming
- Voltage Range: 10-26.4V DC
- SD Card Support: U3 V30 or above MicroSD card up to 256GB
- Angular Accuracy: ±0.01°
- Control Protocol: Triple control: S.BUS, UART, Network Protocol: MAVLink private
- Effective pixels: 8.29M
- Power Consumption: 4.5W (AV) to 18W (Stall)
- Controllable Range: Pitch: ±120°, Roll: ±60°, Yaw: ±160°
- Capability Imaging: 4K AI ISP Imaging
- Mounting Orientation: Downward, Upward
- Max Controllable Speed: ±200°/s
- Equivalent Focal Length: 40.6 mm
- Actual Focal Length Lens: 6.0 mm
- Stabilization Technology: Ultra-light micro 3-axis non-orthogonal gimbal, Dual IMU fusion, Temperature control
- Equivalent Digital Zoom Rate: 8x
- (Dfov) Diagonal Field Of View: 63.2°
- (Vfov) Field Of Vertical View: 30.2°
- (Hfov) Field Horizontal Of View: 54.7°
- Criteria Detection Distance Johnson: Person: 2069 m (6788 ft), Light vehicle: 6345 m (20817 ft), Large vehicle: 13517 m (44347 ft)
- (En62676 4:2015) Detection Distance Object: Person: 175 m (574 ft), Light vehicle: 230 m (755 ft), Large vehicle: 491 m (1611 ft)
- (En62676 4:2015) Distance Identification Object: Person: 35 m (115 ft), Light vehicle: 46 m (151 ft), Large vehicle: 98 m (322 ft)
- First listed by seller: 2/23/26
If you are interested in more details, you can find full information on the seller's page.
