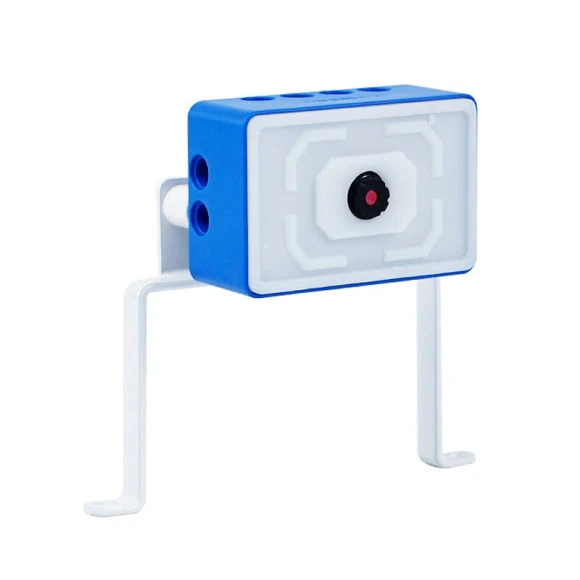

Yahboom ESP32 CAM Wi-Fi Camera Module Kit

Product details

General specs

• Brand: Yahboom
• Model: ESP32 CAM
• Seller: Banggood
• ID: 2017716
• Brand: Yahboom
• PTZ size: 62 36 80 7 mm (axes and separators not specified).
• Model Name: ESP32 CAM
• PTZ weight: 70 g
• Camera Chip: ESP32-S3
• PTZ movement: 2DOF movement in horizontal and vertical directions.
• Product Type: Wi-Fi camera module kit
• Video viewing: Live video stream can be viewed by connecting to the module's Wi-Fi hotspot or to the same Wi-Fi network.
• Remote Control: Yahboom says it will provide a remote-control app supporting remote control of smart cars and the 2DOF PTZ.
• Camera Resolution: 2 MP
• Camera module size: 48 32 23.04 mm (axes not specified).
• Servo stall torque: 1 3 kgf cm (source wording).
• Servo no-load speed: 0 14 sec 60° (source wording).
• Servo stall current: 650 mA
• Camera module weight: 21 g
• Power Supply Voltage: 5 V
• Servo angle accuracy: 180° 1° (source wording).
• Module supply current: 250 mA
• Servo working current: 80 mA
• Wi-Fi operating modes: Default AP mode; STA mode is also supported.
• PTZ servo cable length: 245 mm 5 mm (source wording; relationship between the values is unclear).
• Wi-Fi transmission distance: ≤20 m
• Microcontroller communication: Communicates with STM32, AR and other microcontrollers through the serial port.
• First listed by seller: October 20, 2026
